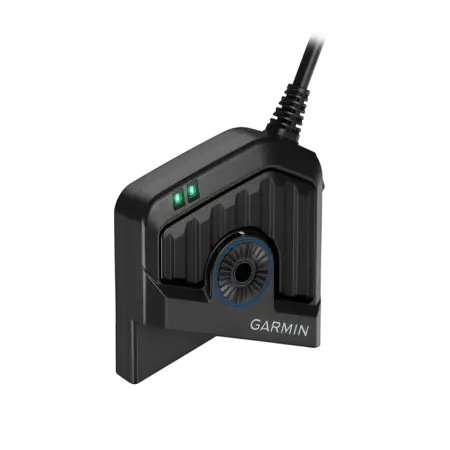

Garmin LiveScope 2 HD Transducer – LVS42HD
Hurry up, only 1 item left in stock.
See fish and your lure in real time with incredible detail using Garmin LiveScope 2 HD.
The LVS42HD is designed for maximum detail and target separation at closer ranges. Garmin's LiveScope 2 HD technology provides ultra-high-resolution live sonar with integrated image stabilization, improved image stitching and reduced artifacts.
Unlike previous LiveScope systems, no separate black box is required. The transducer connects directly to a compatible Garmin chartplotter and power source, simplifying installation.
Use Forward, Down and Perspective modes to see fish, structure and your lure around the boat. The LVS42HD provides bottom tracking out to 125 feet and automatically stops transmitting when the transducer is removed from the water.
Key specifications
- Sonar: LiveScope 2 HD
- Model: LVS42HD
- Forward beam: 20° × 165°
- Down/Perspective beam: 20° × 180°
- Maximum depth: 125 ft Forward and Down
- Frequency: 850–1600 kHz
- Transmit power: 521 W
- Cable: 18 ft
- Connection: 7-pin
- Power input: 10–35 V
- Maximum power usage: 32 W
- Dimensions: 5.2" × 5.3" × 1.9"
- Weight: approximately 3.6 lb
- Target separation at 30 ft: 3.8"
- Target separation at 100 ft: 12.6"
- Perspective Mode mount: Included
- Water detection transmit control: Yes
What's included
Garmin's package includes the LVS42HD transducer, adjustable Perspective Mode shaft mount, trolling-motor barrel mount, power/network cable with adapter, Force Kraken mount adapter disc, hardware and documentation.
