Amped Lithium Battery for Livescopes (LiFePO4) 12v 20 / 12v 30WAH / 14.8v 52Ah

The Amped 12v Lithium Batteries (LiFePO4) are the perfect power source for your Garmin Livescope Packages. With a capacity of 20/30WAH, these batteries provides long-lasting and reliable energy for all your outdoor needs. Check out Amped Outdoors for more detailed specifications.

For 52Ah

NMC batteries were build for portable fishing electronics use. They have higher energy density which means  they pack more power in smaller space. These are intended for kayaks, portable shuttles and ice fishing. If used in a boat, please make sure you do not store them in the boat. Remove them after use and bring indoors, charge only indoors and never charge in your boat or leave your charger in the boat where it can get wet.

THIS BATTERY IS FOR FISHING ELECTRONICS ONLY AND WILL NOT WORK WITH TROLLING MOTORS!

Highest capacity battery to fit Garmin Bag in the industry today! Our new 52Ah (769.6Wh) 14.8V NMC Lithium Ion Battery is the highest capacity and longest lasting battery designed specifically for our advanced fishing electronics of today. Running out of power is no longer an issue when running high current electronics of today.

Why 14.8V NMC Lithium Ion? Since most of our fishing electronics today are made to operate up to 17+ volts, this battery has a working voltage of 16.8V when fully charged and 12V  when fully depleted. That means you have the most usable capacity and zero worries of low voltage poor returns/images from your electronics. Unlike the competition selling similar NMC batteries (Usually 11.1V), our batteries use only the best NMC Lithium from Japan. Instead of getting 300-400 charge cycles with NMC from others, Amped Outdoors NMC will give you 800-1000 Charge cycles and a longer life expectancy.

Made to fit: Clam Battery Tray, Portable Power Boxes, and portable shuttles listed below

Portable Shuttles - Below will list the brands of portable shuttles this battery will fit:

HD Innovations - Summit Fishing - Garmin (all units)  - Lowrance (all units) - BassKhang - ArcLabs - Fin Gear - TKI - and many more!

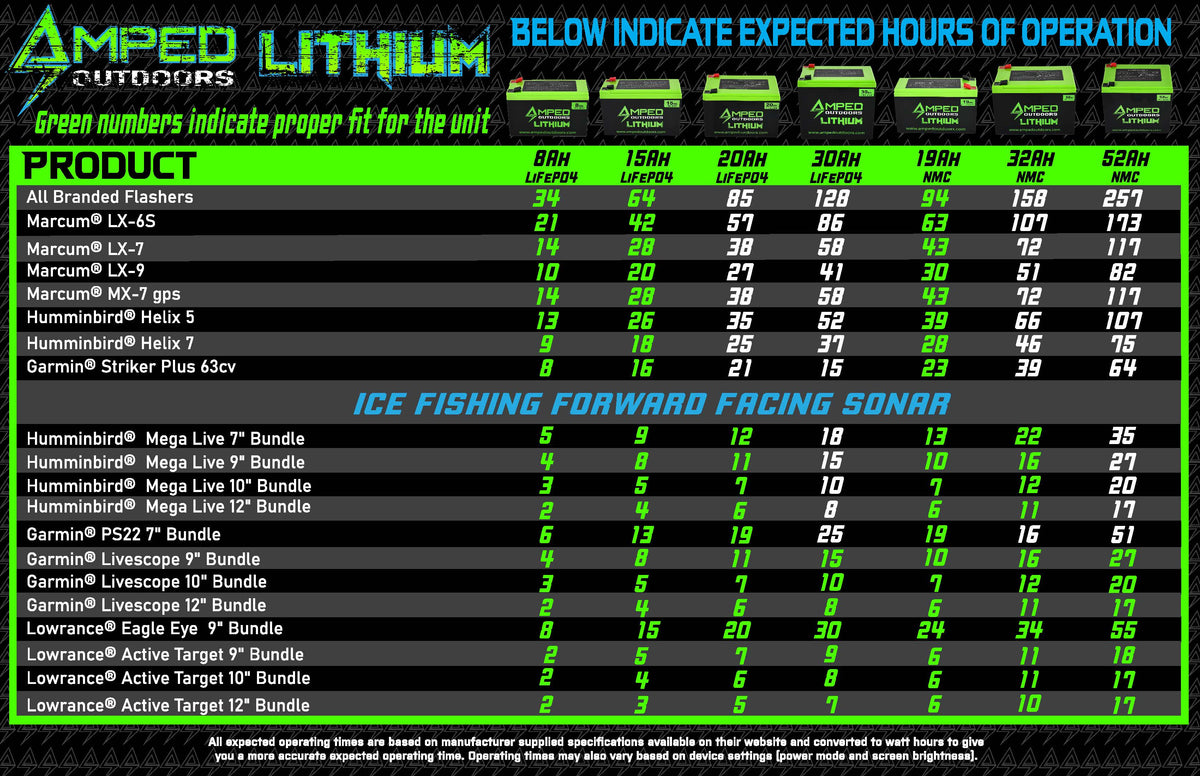

Click your brand below to see video content and expected operating times:

Contents:

1. 52Ah Lithium Battery
2. 16.8V Charger (Use with 14.8V Amped Outdoors Battery Only!)
3. User Guide

• Actual Voltage: 14.8V
• Nominal Capacity: 52AH
• Discharge Cut-Off: 12V
• Charge Cut-Off: 16.8V
• Charge Current: 15A Max
• Cont. Discharge: 15A Max
• Peak Discharge: 15A Max
• Charge Temperature: 32F to 110F
• Operation Temperature: -20F to 140F
• Charge Method: CC/CV
• Life Cycle: 800-1000

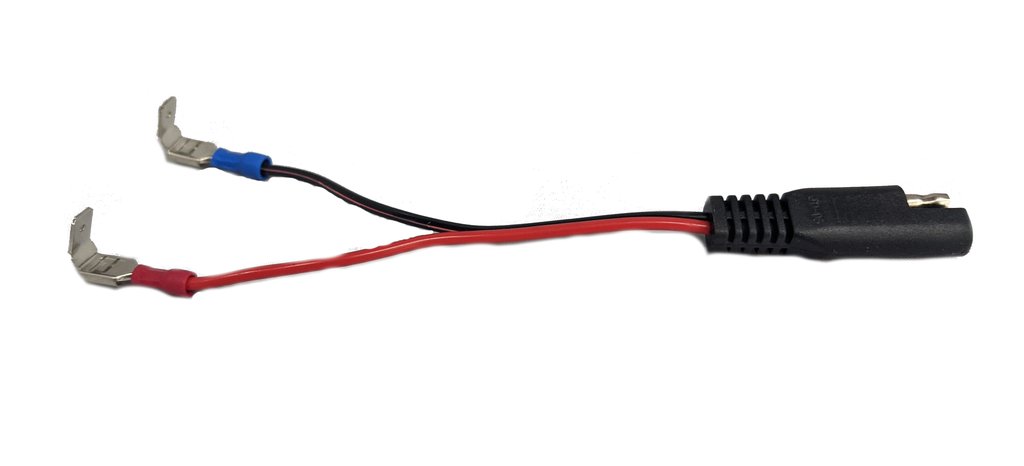

• Terminal Type: Spade - F2 Connectors
• Weight: 7lb 1oz
• Warranty: 5yrs

Dimension: L*W*H: 150*99*131, Inches - 5 7/8 x 3 29/32 x 5 1/8

Charging: All Amped Outdoors NMC batteries must be charged with supplied 16.8V Charger. Using any other charger could cause damage to the battery. Do not use ANY Amped Outdoors charger on a battery without a BMS such as SLA (sealed lead acid) batteries

Disclaimers: This battery is solely intended for 14.8v volt electronics use only. It may be wired in parallel to achieve a higher capacity but should not be run in series. Please contact us at Sales@Ampedoutdoors.com if you are looking for a battery that may be run in series to achieve a higher voltage.

DO NOT DISMANTLE OR SHORT CIRCUIT THE BATTERY!

DO NOT CRUSH OR PUNCTURE THE BATTERY!

DO NOT PLACE THE BATTERY NEAR RESOURCES OF HEAT SUCH AS OPEN FLAME!

DO NOT PLACE BATTERY IN FLUIDS SUCH AS (SALT) WATER ACID OR ALKALINE!

DO NOT CHARGE THE BATTERY OUTDOORS. NMC CHARGER IS NOT WATERPROOF AMD NOT SUITED FOR ON BOARD INSTALLATION!

WARNING: WARNING: Lithium-ion batteries and products that contain lithium-ion batteries can expose you to chemicals including cobalt lithium nickel oxide, and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm.. For more information go to www.p65Warnings.ca.gov.
