Garmin

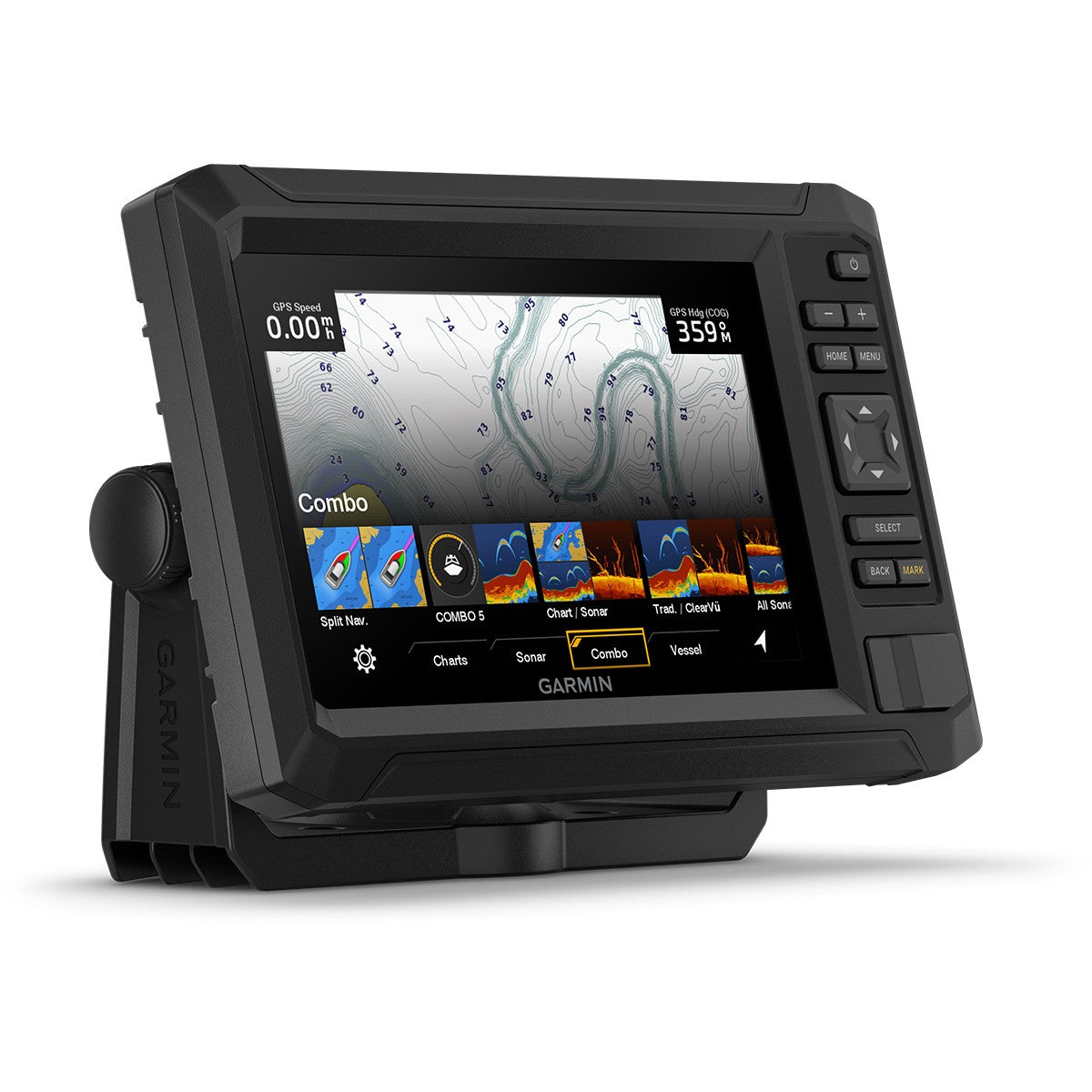

Garmin ECHOMAP UHD2 73CV GT20

Garmin ECHOMAP UHD2 73CV GT20

Regular price $486.99 USD
Regular price $599.99 USD Sale price $486.99 USD
Sale Sold out
Shipping calculated at checkout.
They say locals know best. But anyone who says that hasn't fished with the ECHOMAP UHD2 7" chartplotters with clear, crisp sonar and mapping.
Features:
  • Bright 7" keyed display is made for convenience
  • Get double the views with Garmin CHIRP traditional and ClearVü scanning sonars
  • What's under the water looks even better with high-contrast vivid color palettes
  • Wi-Fi® connectivity between compatible chartplotters makes it easy to share info
  • Enjoy No. 1 in mapping with LakeVü g3 and BlueChart® maps with Navionics® data
  • DIMENSION 9.1" x 5.6" x 2.6" (23.2 x 14.3 x 6.7 cm)
  • INPUT Keyed
  • DISPLAY SIZE 6.1" x 3.4" (15.5 x 8.7 cm)
  • DISPLAY RESOLUTION 800 x 480 pixels
  • DISPLAY TYPE WVGA, TN
  • WEIGHT 1.5 lbs (0.7 kg)
  • WATERPROOF IPX7
  • MOUNTING OPTIONS Bail or flush
  • ACCEPTS DATA CARDS 1 microSD™ card; 32 GB maximum size
  • WAYPOINTS 5,000
  • TRACK POINTS 50,000
  • TRACKS 50 saved tracks
  • NAVIGATION ROUTES 100
  • POWER INPUT 9 to 18 Vdc
  • TYPICAL CURRENT DRAW AT 12 VDC 1.0 A
  • MAXIMUM CURRENT DRAW AT 12 VDC 1.5 A
  • MAXIMUM POWER USAGE AT 10 VDC 18W
  • 4-PIN TRANSDUCER PORTS 1
  • GARMIN WI-FI NETWORK (LOCAL CONNECTION)
  • POWER OUTPUT 500 W
  • TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
  • CLEARVÜ built-in 260/455/800/1000/1200 kHz
In The Box:
  • ECHOMAP UHD2 7"
  • GT20-TM transducer
  • Power/data cable
  • Tilt mount
  • Flush mount
  • Hardware
  • Documentation
