GARMIN FORCE TROLLING MOTOR -- In store sales only...

GARMIN FORCE TROLLING MOTOR -- In store sales only...

Regular price $3,199.99 USD
Regular price $3,699.99 USD Sale price $3,199.99 USD
Sale Sold out
Shipping calculated at checkout.
Shaft Length

Because of the weight of these trolling motors we cannot ship them at a reasonable price.  They are available in store only.

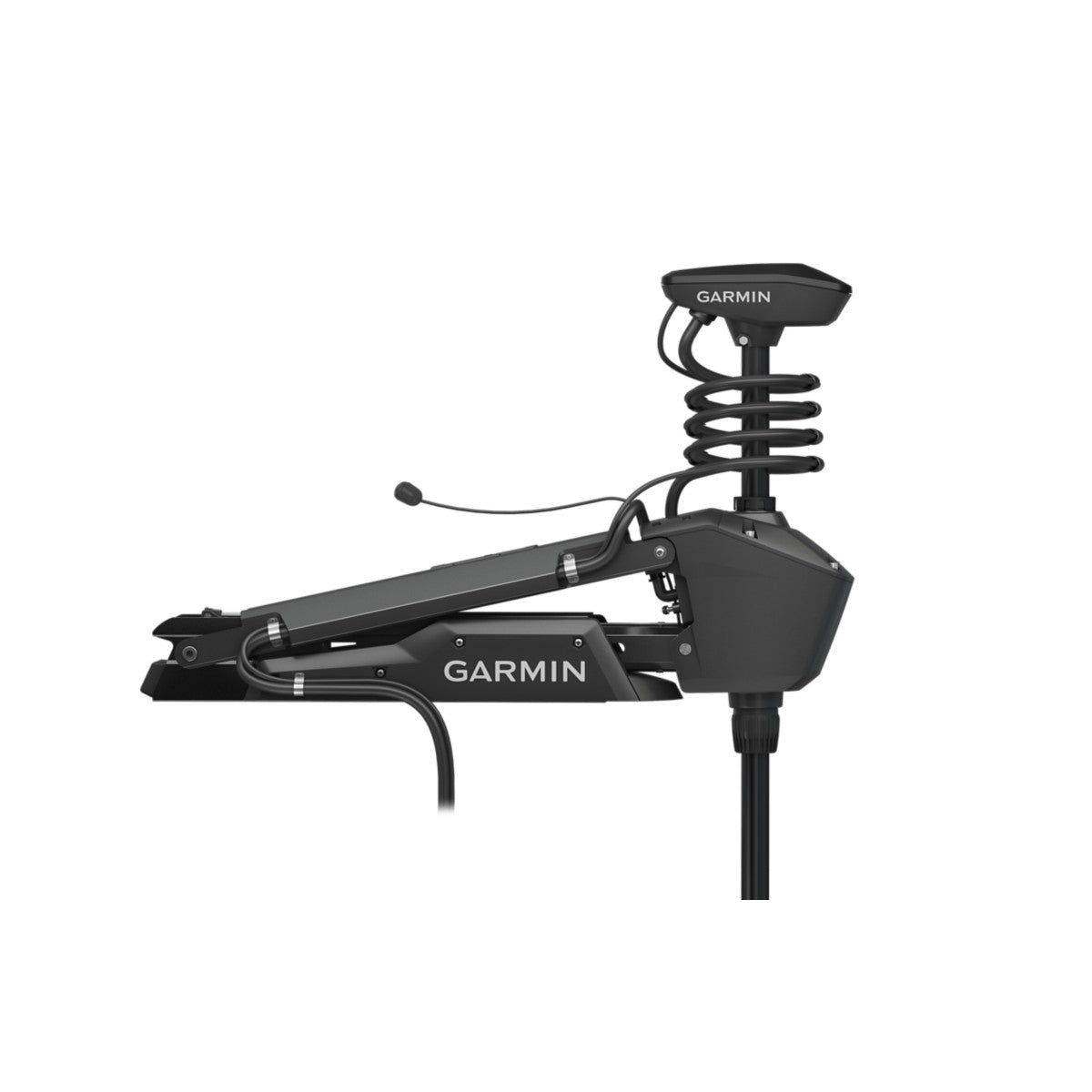

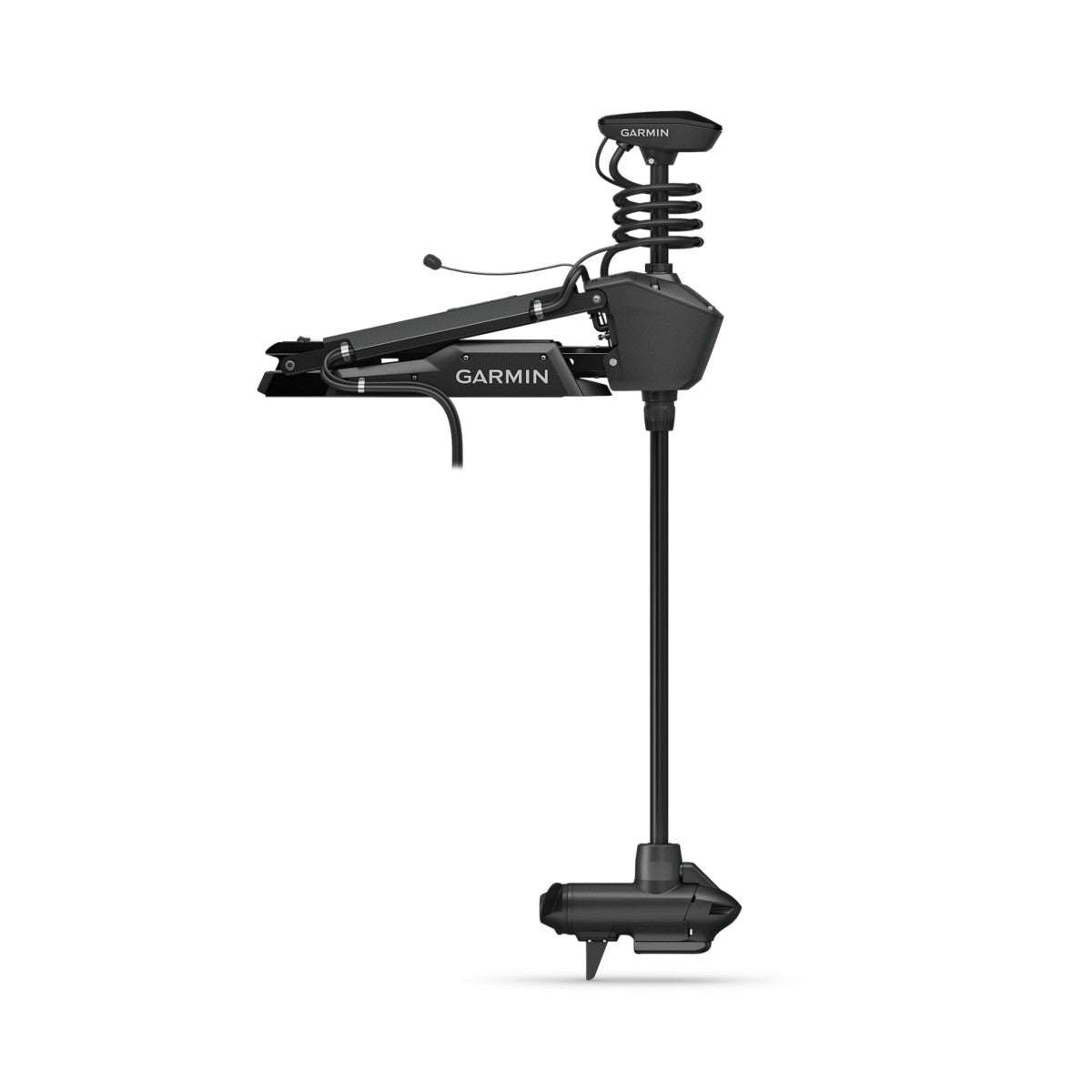

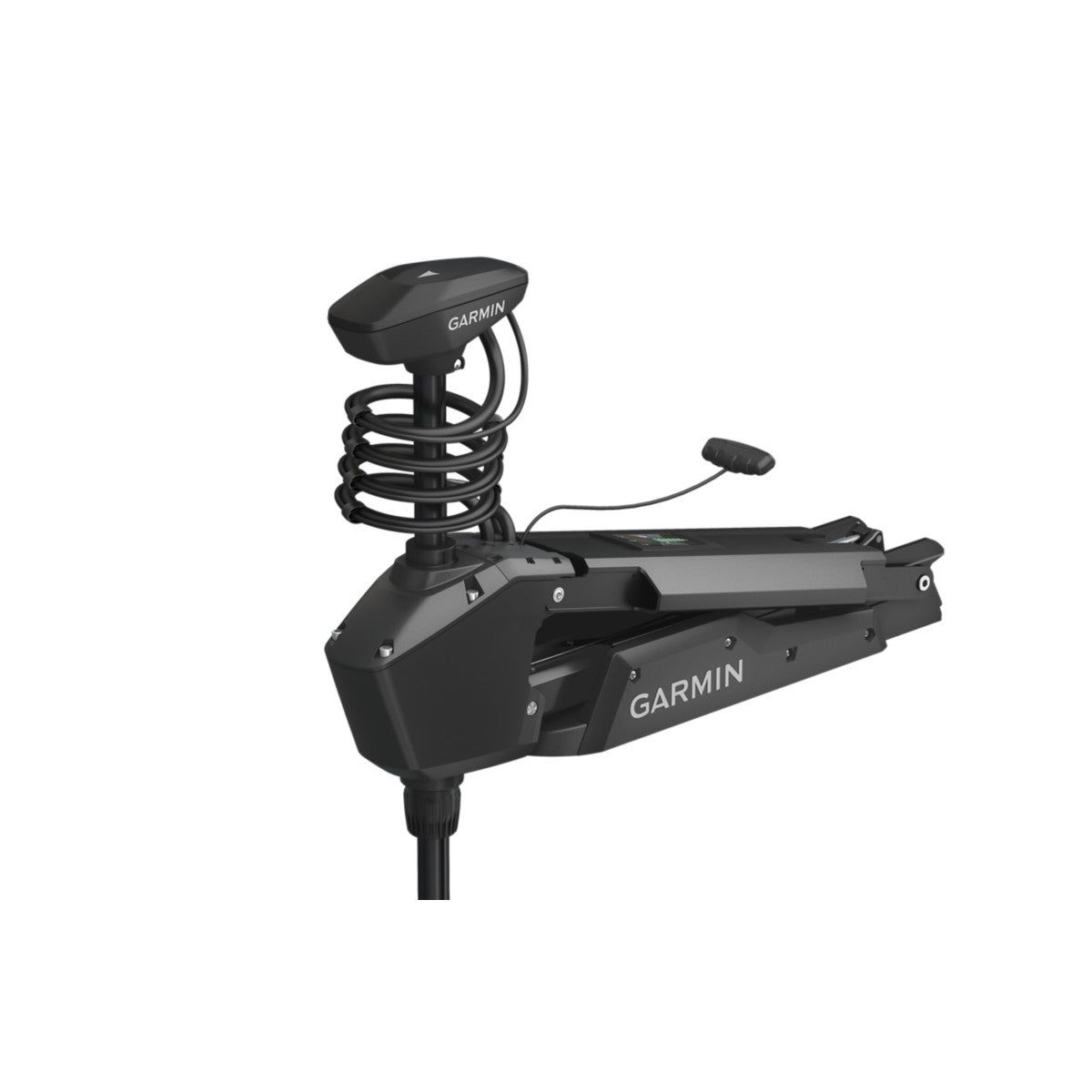

The Garmin Force Trolling Motor is the most powerful and efficient 50/57-inch trolling motor available. This Garmin trolling motor quickly deploys and easily retracts and stows thanks to dual gas springs. Integrated CHIRP, ClearVü, and SideVü scanning sonars provide a clear picture of the surrounding waters, while built-in GPS, auto-pilot functionality, and a heading sensor allow you to easily mark and move between your favorite spots and waypoints. The Garmin Force 50/57-inch motor includes a foot pedal and wireless remote for easy, quick control and operates with electric steering. With a high-efficiency motor, the Garmin Force Trolling Motor delivers powerful thrust in a quiet motor with simple point-and-go steering. It operates at either 36 V or 24 V. When running at 24 V, it delivers comparable thrust to the competitors’ 36-V motors.

  • AutoPilot
  • Anchor Lock
  • Heading Hold
  • Cruise Control
  • Route Following
  • ClearVü: 200 ft.
  • SideVü: 455 kHz
  • ClearVü: 800 kHz
  • Transmit Power: 350 W
  • ClearVu: Ultra-high-definition 800 kHz
  • Maximum Depth CHIRP Sonar: 800 ft.
  • Number of Pins: 12 (orange connector)
  • Gesture Features (manual+, heading hold+, jog+)
  • 455 kHz SideVü: 500 ft. to each side; 1000 ft. total
  • SideVu: Ultra-high-definition 1200 kHz and 455 kHz
  • Frequencies supported CHIRP sonar: High-wide CHIRP (150-240 kHz), ClearVu: Ultra-high definition 800 kHz, SideVu: Ultra-high definition 1200 kHz and 455 kHz
  • Partial Frequencies Supported CHIRP Sonar: High-wide CHIRP (150-240 kHz), ClearVü: 800 kHz, SideVü: 455 kHz
  • Maximum view: CHIRP sonar: 800', ClearVü: 200', Ultra-high definition SideVü: 125' to each side; 250 total at a max depth of 30', 455 kHz SideVü: 500' to each side; 1000' total
Foot Pedal:
  • Wireless Communication
  • Waterproof Rating: IPX7
  • AA Battery Life: 1 full season
  • Adjustable Pedal Resistance
  • Dimensions: 12" L x 9" W x 4.5" H
  • Power Installation: 12V wired or battery-powered (2 AA)
  • Waterproof Rating: IPX7
  • Autopilot Feature Control
  • Display Resolution: 240 x 240 pixels
  • Display Size: 1.2" (30.4 mm) diameter
  • Chartplotter User-Programmable Keys
  • Battery Life (Typical Use with Low Backlight): 43.2 weeks
  • Display Type Color, Sunlight-Visible, Transflective Memory-in-Pixel (MIP)
In the Box:
  • Trolling Motor
  • Built-in GT54UHD-TM transducer
  • Foot Pedal

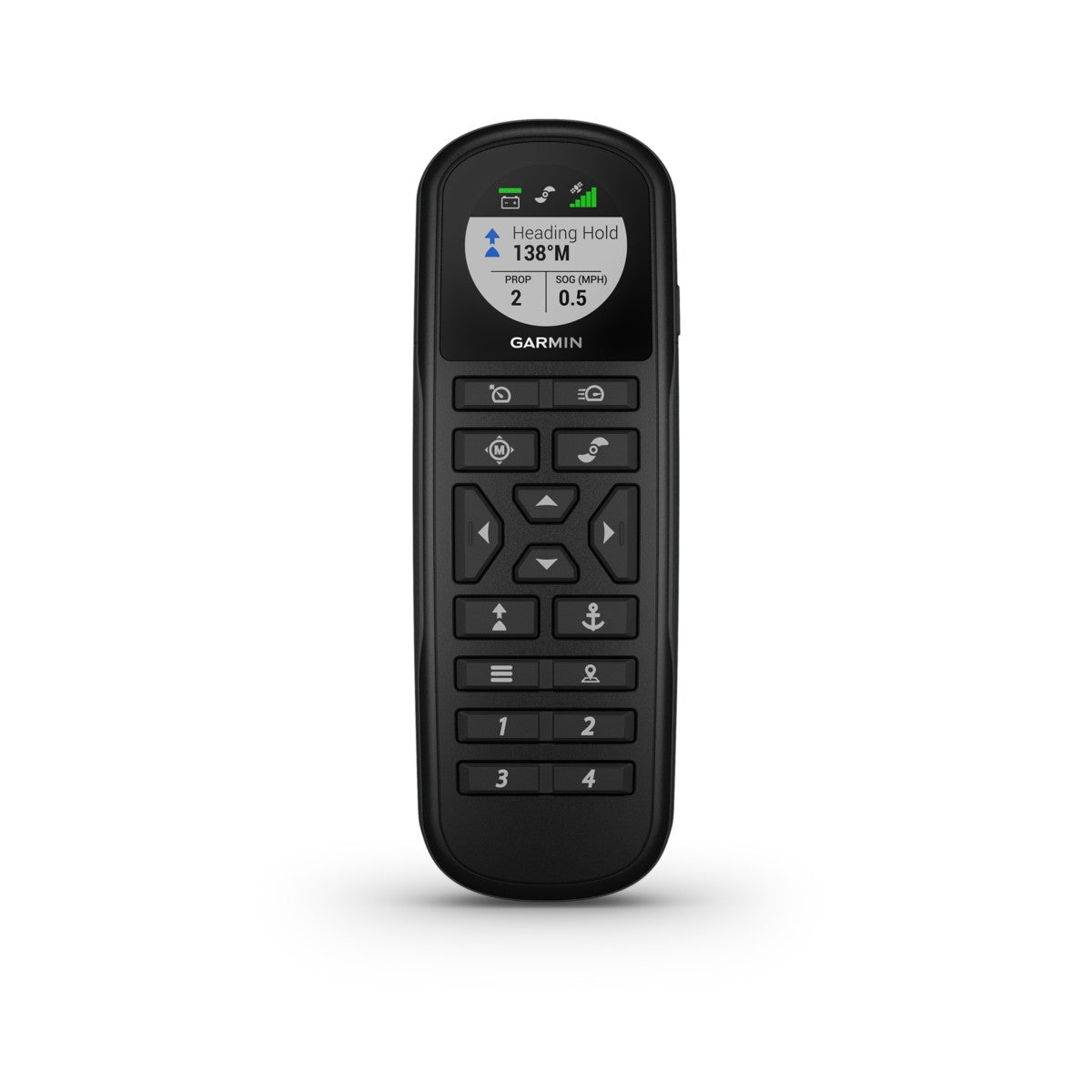

  • Remote
  • High Efficiency Propeller
  • Stabilizer
  • Assembly and Mounting Hardware
  • Documentation
